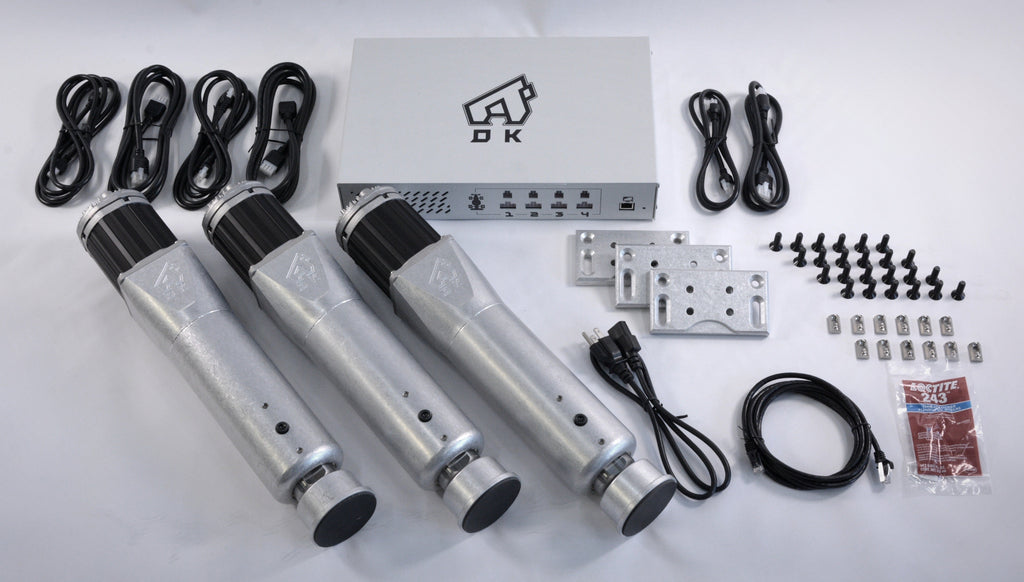

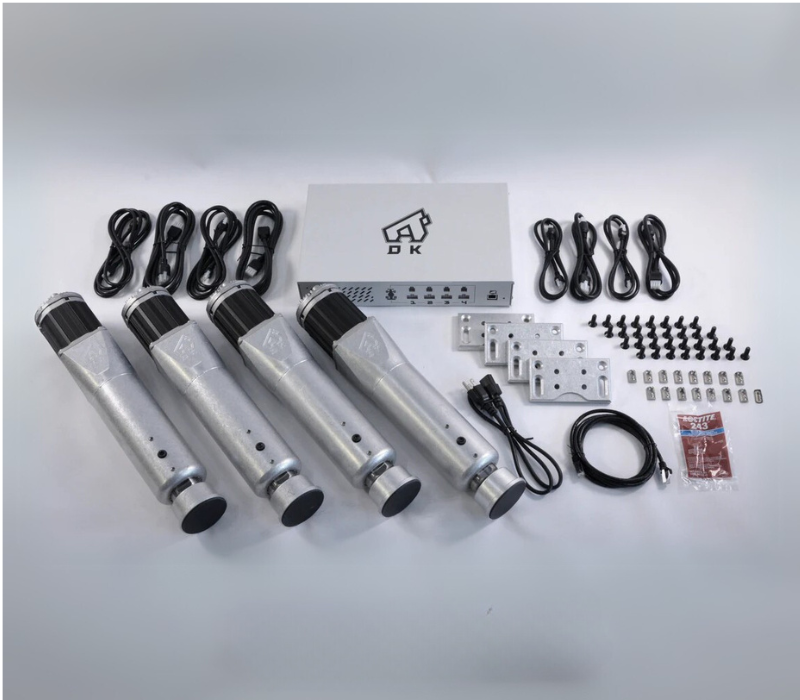

DK6+ Motion System

USA domestic shipping is 3-5 days. All international shipping is typically 5-7 days.

The DK6+ motion system is a 6" (150mm) motion system designed for high travel simulation applications such as off-road racing, rally and flight. The additional stroke allows for better representation of our motion layers with less saturation and hence it also compliments low travel vehicles such as formula cars.

The common saying of "less is more" is really a half-truth. High travel motion systems, if designed well, can better represent the true dynamic nature of vehicle dynamics. The DK6+ however still shares our philosophy of Motion Integrity and does not over-represent certain layers such as pitch and roll which make control input unnecessarily more difficult.

The system shares the same design and construction as our industrial-grade DK-X motion systems used in our full motion vehicle and platform simulators. Additionally, DK6+ is mechanically and electrically engineered around our unique motion algorithm to provide the most realistic and representative vehicle motion feedback with no pre-recorded canned effects.

DK6+ takes a modern approach to signal processing and motion control to create the most responsive system on the market. Every elevation change, vehicle movement, surface change and gear shift, is captured and reproduced within 2” (50mm) of the available mechanical stroke.

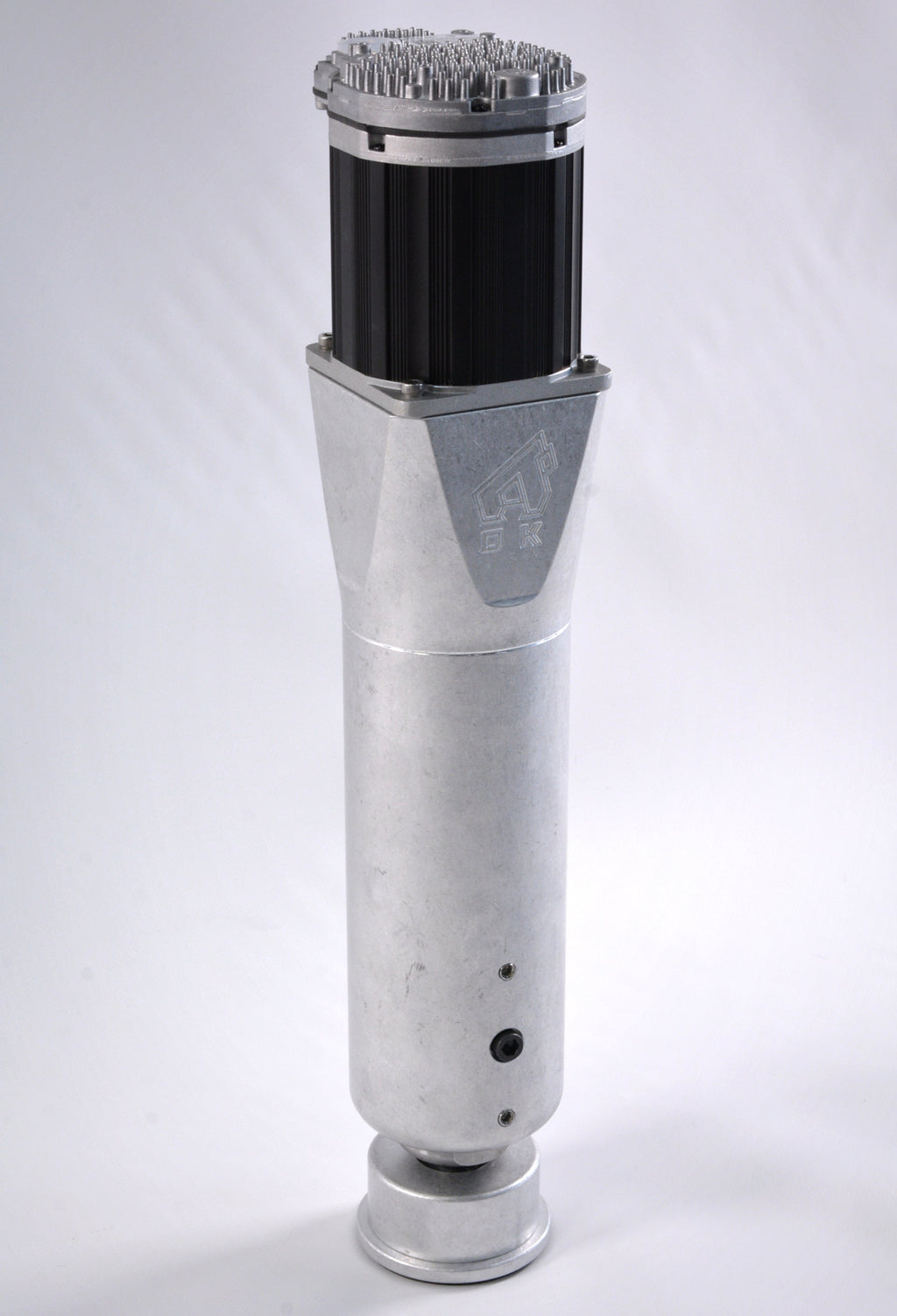

The DK6+ was originally created to serve many race and flight simulation centers around the world. The larger Teknic motor is capable of 800 lbs. (360 kg.) of total supported mass and hence can support a larger variety of drivers or exceptionally heavy rigs. The DK6+ is also engineered with a solid steel piston and special dry run bearings for exceptional side loading capability.
